NEOLine

Model	Parameter	Max. Pressure(bar/psi)	Max. Flow Rate(I/min)	*Max. Orifices Dia(mm)**	No. of Nozzles (pcs) with 0.25 mm Orifice	Power (Kw / HP)	L x W x H (m)
Jetline JL-I 30		3800/55,000	2.3	0.28	1	22/30	1.7.x0.9x1.2
Jetline JL-I 50		3800/55,000	3.8	0.35	2	37/50	2.0.x0.9x1.1

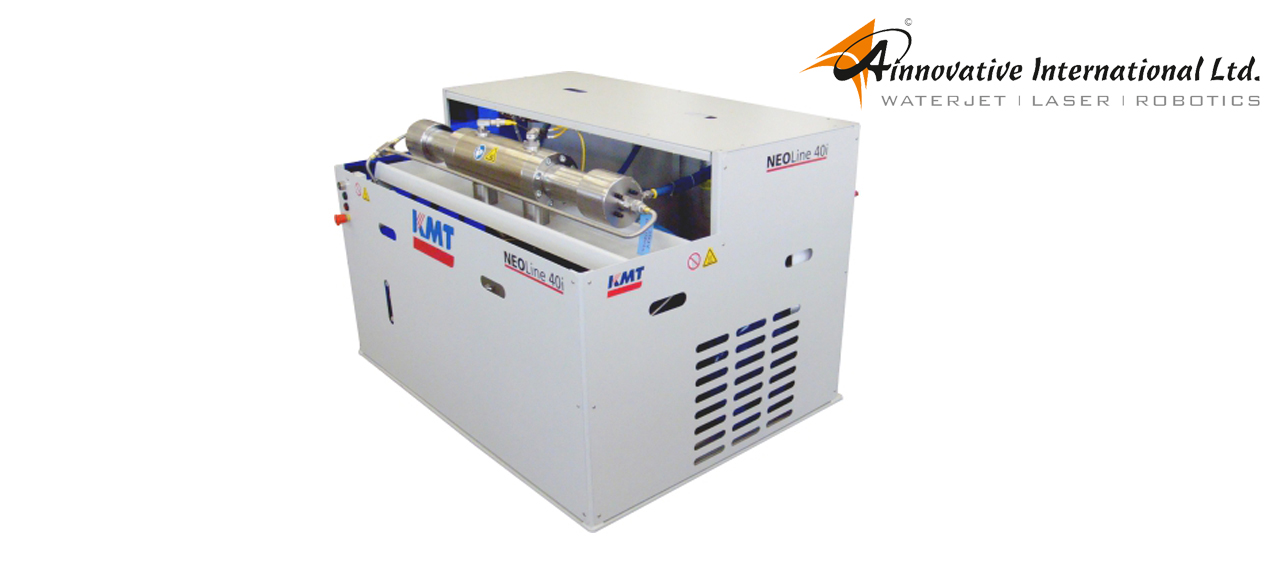

NEOLine 40i		3800/55,000	2.7	0.28	1	30/40	1.1x1.4x1.0
SL-V- 30 Classic		3800/55,000	2.3	0.25	1	22/30	1.7.x0.9x1.2
SL-VI- 50 STD		3800/55,000	4.5	0.38	2	37/50	1.7.x1.1x1.5
H2O Jet 50		4136/60,000	3.8	0.35	2	37/50	1.4.x1.2x1.0
SL-V- 30S Plus		4136/60,000	2.1	0.25	1	22/30	1.7.x0.9x1.5
SL-V- 50S Plus		4136/60,000	4.1	0.35	2	37/50	1.7.x1.1x1.5
SL-V- 60S Plus		4136/60,000	4.2	0.35	2	45/60	1.7.x0.9x1.5
SL-V- 75S Plus		4136/60,000	5.4	0.40	2	56/75	1.9.x0.9x1.5
SL-V-100S Plus		4136/60,000	7.0	0.40	3	75/100	1.9.x0.9x1.5
SL-V-150D Plus		4136/60,000	9.1	0.50	4	112/150	2.3x1.7x1.7
SL-V-200D Plus		4136/60,000	14	0.70	7	149/200	2.3x1.7x1.7
PRO-III 60S		6200/90,000	2.8	0.28	1	45/60	2.1x1.3x2.0
PRO-III 125D		6200/90,000	5.8	0.40	2	93/125	2.2x1.5x1.5
