Intensifier Pump Systems - C30B
ULTRA HIGH PRESSURE PUMP can be selected as per the material, thickness, finish and required cutting speed
Intensifier Diagram

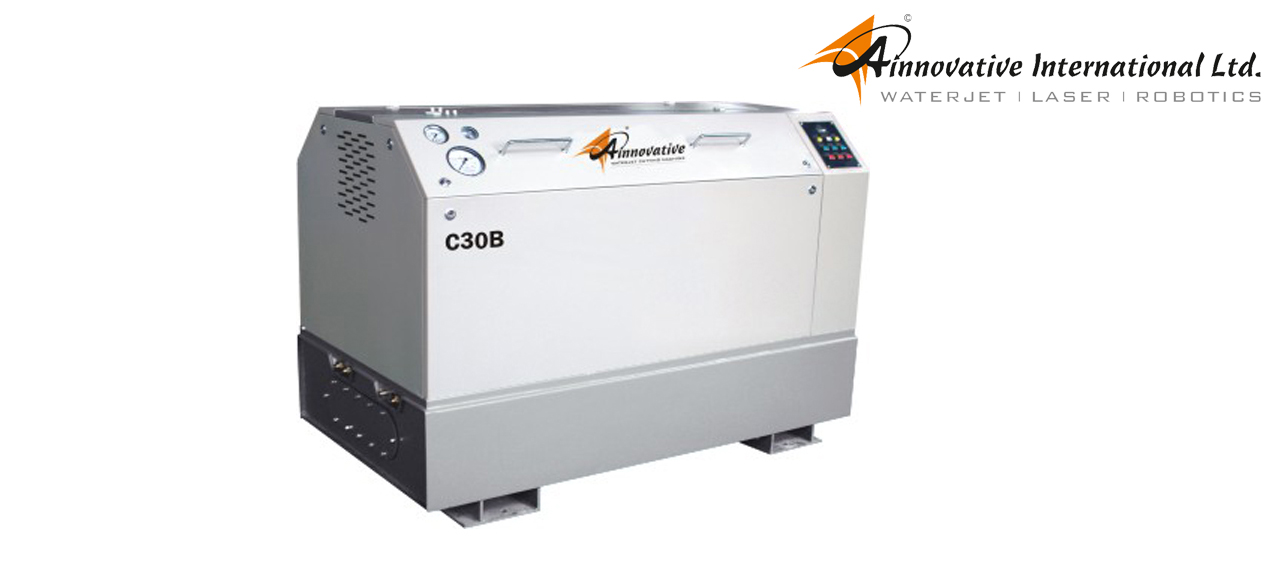

Intensifier Pump Systems - C30B
TECHNICAL PARAMETERS OF UHP PUMP SYSTEM
| Model / Parameter | Max. Pressure (bar/psi) | Max. Flow Rate (I/min) | Orifices* Dia (mm) | No. of Nozzles (pcs) | Powe (Kw / HP) | L x W x H (m) | ||
|---|---|---|---|---|---|---|---|---|
| C30B | 3000/40,000 | 3.1 | 0.25 | 1 | 22 / 30 | 1.6 x 0.9 x 1.2 | ||
| C40T2 | 3800/55,000 | 3.1 | 0.33 | 1 | 30 / 40 | 1.7 x 1.0 x 1.2 | ||
| C50T2 | 3800/55,000 | 3.7 | 0.33 | 0.25 | 1 | 2 | 37 / 50 | 1.7 x 1.5 x 1.4 |
| C50V | 4136/60,000 | 3.7 | 0.35 | 0.33 | 1 | 2 | 37 / 50 | 1.5 x 1.2 x 1.6 |
