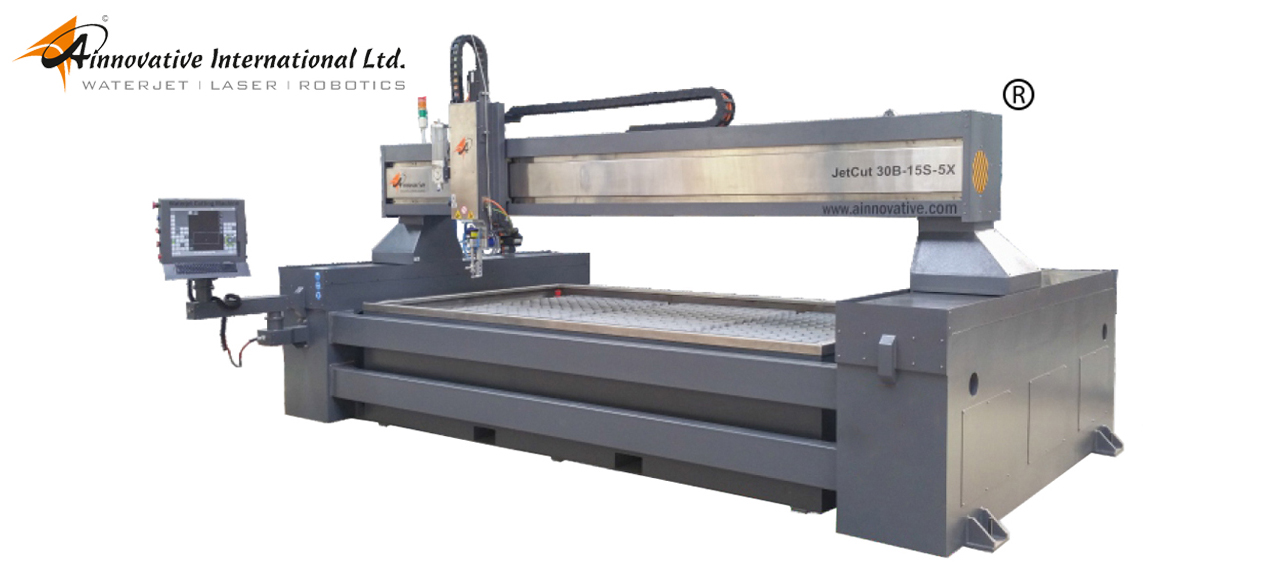

30 Series Bridge Structure
BRIDGE CNC CUTTING TABLE SERIES
30 Series Bridge Structure
| Model | 30B-15 | 30B-20 | 30B-30 | 30B-40 | 30B-60 | 30B-80 | 30B-100 | 30B-120 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cutting Area | X-axis | 3000 mm |
3000 mm |
3000 mm |
3000 mm |
3000 mm |
3000 mm |
3000 mm |
3000 mm |
|||
| Y-axis | 1500 mm |
2000 mm |
3000 mm |
4000 mm |
6000 mm |
8000 mm |
10000 mm |
12000 mm |
||||
| Z-axis | 250mm | 250mm | 250mm | 250mm | 250mm | 250mm | 250mm | 250mm | ||||
| NC System | Power Automation Compatible | |||||||||||
| Positional Accuracy | ±0.04mm | |||||||||||
| Repeat Accuracy | ±0.04mm | |||||||||||
| Traverse Speed | Up to 20000mm/min. | |||||||||||
Intermediate or bigger table sizes available on request
Above specification are for references only & may be defer in quoted machine. Please refer quotation for details.
