15/20 Series Flying Arm Structure

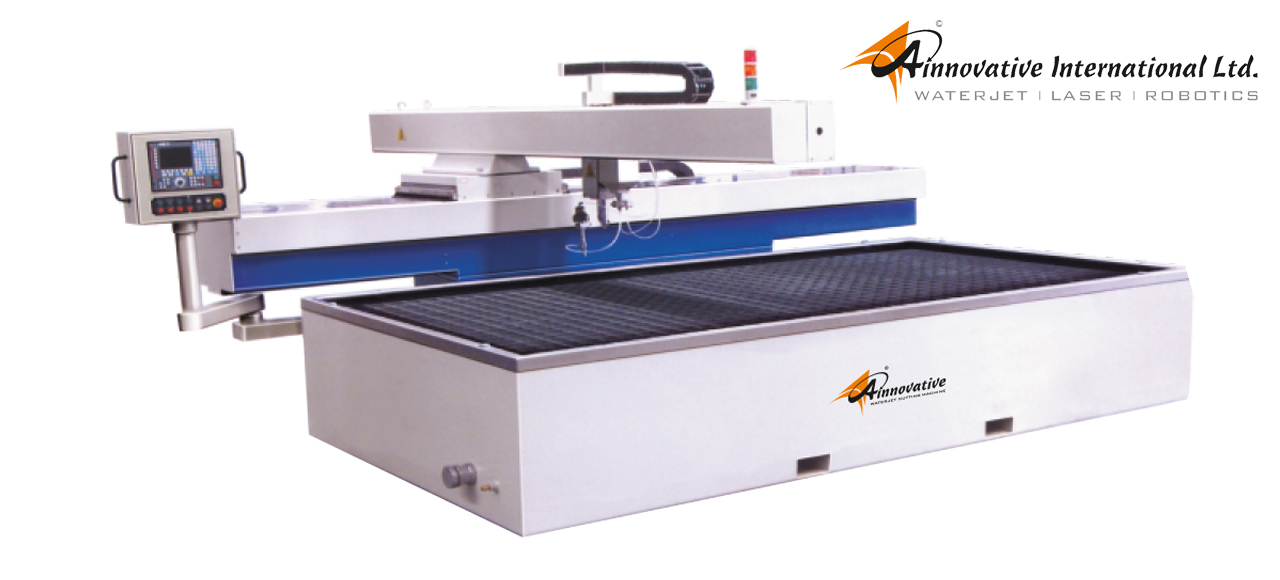

Flying Arm (3 Side Open) CNC CUTTING TABLE Series
15/20 Series Flying Arm Structure
| Model | 1525-FC | 1530-FB | 2030-FB | 2040-FB | 2060-FB | 2080-FB | ||
|---|---|---|---|---|---|---|---|---|
| Cutting Area | X-axis | 1500mm | 1500mm | 2000mm | 2000mm | 2000mm | 2000mm | |
| Y-axis | 2500mm | 3000mm | 3000mm | 4000mm | 6000mm | 8000mm | ||
| Z-axis | 210mm | 210mm | 210mm | 210mm | 210mm | 210mm | ||
| NC System | Power Automation / Washing or Compatible | |||||||
| Positional Accuracy | ±0.04mm | |||||||
| Repeat Accuracy | ±0.04mm | |||||||
| Traverse Speed | Up to 20000mm/min. | |||||||
Intermediate or bigger table sizes available on request
Above specification are for references only & may be defer in quoted machine. Please refer quotation for details.
